Sunward swtl4538 Compact Track Loader Track Skid Steer

Need for a compact and versatile loader with good lift capacity, and plenty of power whatever the terrain?

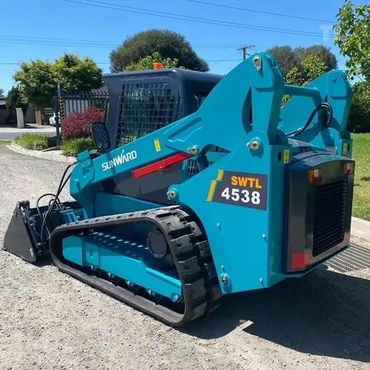

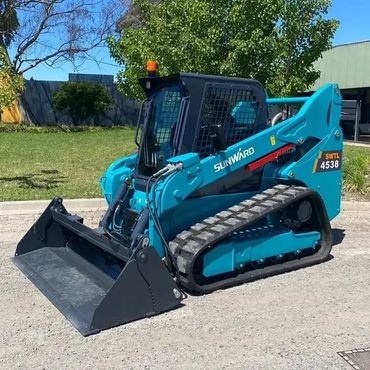

Thanks to the suspended undercarriage system and the tracks, the Sunward SWTL4538 compact track loader offers excellent performance with outstanding drawbar power for operation on rough terrains like mulch, rock, or dirt. It is also highly versatile and compact enough to be easily maneuverable in small spaces. Despite its compact size, you will be impressed by the great breakout force and huge lift capacity.

The powerful Kubota engine offers performance, exceptional reliability, and long service life. Maintenance and service are also easily accessible. Daily maintenance is very easy since service checkpoints and cooling system components are accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the cab.

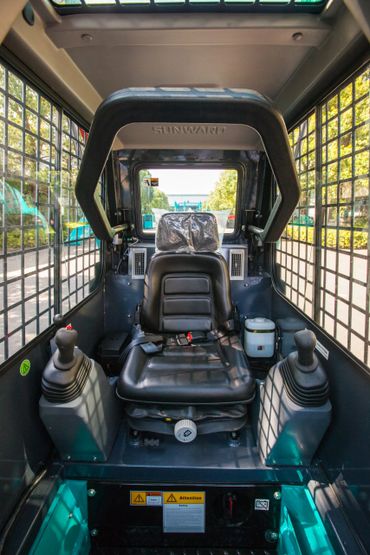

When it comes to comfort, the SWTL4538 offers a spacious cab with a wide entrance, a comfortable seat, ergonomic controls, and excellent all-around visibility. Last but not least, safety is not at rest thanks to the cab coupled with the excellent visibility and great stability

of the machine.

Discover all the other advantages of the Sunward SWTL4538.

 Operating weight                    9,700 lbs
Length                                        147 “
Width                                          79.3 “
Height                                         81.5 “
Ground clearance                     9 “
Turning radius from center    56.1 “

 Model                                            Kubota V2403-CR-TE5B
Peak Torque                                195.5 lb-ft
Rated power output                  74.3 HP

 Brand                        KYB
Displacement          23.8 gal/min
Pressure                    3,045 psi

 Rated operating capacity      2,646 lbs
Tipping load                               7,562 lbs
Tilt force                                      7,463 lbs
Lift force                                      5,732 lbs
